    LANTERNS - COLUMNS



    COLUMNS

Victorian style street lantern posts consisting of a standard steel street lighting column to BS5649 up to 5M out of ground with 800mm root. Over which a cast aluminium embellishment kit are fitted transforming it into an attractive ornate Victorian lamp post incorporating the strength and ductility of modern engineering techniques. Please note, column prices do not include Lantern.

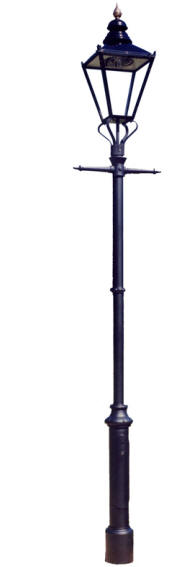

ESPLANADE  COLUMN


Esplanade Column Ref: E3/E3.5 or E4.7 (depending on height required)  Supplied with castings fitted.
Comprising standard galvanised steel
lighting Column to B.S.5649 with added cast embellishment sections, ladder rest, ring middle and base section. Finished in Anti corrosive black.



HEIGHT
O/A length of column available to ground level A
3M 3.5M or 4.7M.
(6 metre to special order) Nominal height = (Ground to light source) B+A.



Full specification sheet available on request.

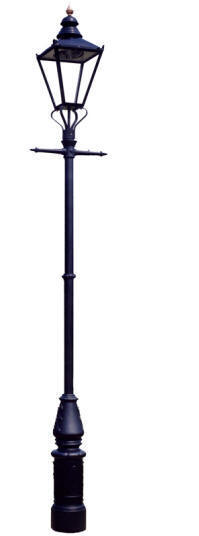

DEVONSHIRE COLUMN



SPECIFICATIONS
Devonshire Column Ref DEN3/3.5/4.7 Item 77-78-79 Comprises galvanised standard steel lighting column to B.S.5649 with fitted encasement casting, ladder arm and ring. Finished in Anti corrosive black.



HEIGHT
O/A Length of column available to ground level A 3M 3.5M or 4.7M.
 (6 metre to special order)
Nominal Height = (Ground to light source) B+A.



ENCASEMENT DETAIL
Totally encloses column bases 139.7mm O.D. and 76mm shaft.
Manufactured from LM25 aluminium and Zinc chromate etch primed or black finish. Access door with interior fuse board. Clients crest/emblem can be cast into door if required.





Columns Downloads








Esplanade column

►Devonshire Column





Tel: 01404 861494   Email: sales@waterslighting.co.uk
