Traditional design dating back to
the late 1800's and sold worldwide though synonymous with
Victorian London.

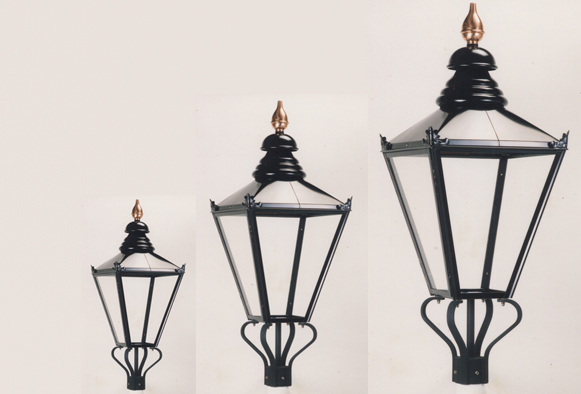

Available in three sizes from 315mm to 415mm manufactured from
copper with zinc sprayed steel frog, stove enamelled satin black
all over finish.
All three sizes fitted with polycarbonate lenses, side access
door and removable canopy.
All night photo cell optional.
Note: These lanterns can be
supplied in natural copper if required which will oxidise over a period of
time to give an all over green appearance.
Electrical
Lanterns can be fitted with gear
head:
1. High pressure
sodium control gear 50 - 150 watts (In larger lantern)
2. Metal halide 50
- 100 watts
3. Edison screw for use with GLS or energy saving lamps
4. Optical reflector can be
fitted to largest model. (Lantern Ref V1B/GO)
Full Lantern specification sheet available on
request
|
VIB |
This lantern
is available in 4 electrical specifications: |
|
VIB-ES Edison screw holder
to suit GLS or energy saving lamps |
|
VIB-BC
Bayonet cap to suit |
|
VIB-GIH Gear
in head, 50W - 100W high pressure sodium |
|
VIB - GO Gear
in head and Optical control unit |
XP600 LANTERN
 |
| IP66 Windsor Style
Lantern -Ref XP 600 |
|
O/A Dimensions in mm |
|
Height 1150 |
| Largest Width 460
(square) |
| Glazed area 375 |
| Top 400
Sides 140 |
|
 |
 |
The XP600 is a high specification
Lantern aimed at the highways Estate developer market. This
lantern gives precise control of light distribution from Son T lamps in
combination with an optical reflector unit with a plug and socket lamp
change and has the added advantage of the sealed one piece polycarbonate
glazing bucket.
LARGE
COTLEIGH SUSPENDED LANTERN
For Pole/Bracket/Wall mounting
Ref: LCGO 70/150W
|
1.
I.P. 66 sealed optical reflector with photometric data
2. Double environmental
seal to gear compartment
3. Plug & socket
lamp change
REF
L.C.G.O 70/150W
also available as
SCGO 50/100W |
Finial only available with
bracket mounting version |
4.
five quick access fasteners to hinged reflector
5. No tools gear change
(plug & socket)
6. Polycarbonate formed
bowl
7. Easy Cabling facility
I.P. 66
RATING |
Aimed at the municipal
market this lantern offers IP66 and high performance optics for 5 - 8m
posts.
The lantern is based on a 1920 unit used for general urban
lighting and is equally at home in street or car park applications.
Access
Through hinged reflector |
All dimensions in mm |
Glazing
Vacuum formed polycarbonate clear bowl |
Mechanical
Construction
Spun aluminium two sectional compartments housing, with hinge
down bowl, reflector unit and safety strap secured to top half
with 5 stainless over centre fasteners. Neoprene rubber 'O' rings
to mating surfaces & all joints siliconed. Whole unit sealed
to I.P.66 |
Mounting
Top entry mounted attachment to bracket by 1" BSP threaded
nipple (1¼ adaption available)
Photo-metric data
Available on request
Wind Area
0.45m²
|
Finish
Alachrome or anodized surface treatment to aluminium base metal.
Top coat is polyester stove enamel finish to main body and
reflector top surface. White stove enamel applied to undersurface
of reflector. Gear tray & all internal structural components
electro zinc plated.
Weight 14 Kg |
Electrical
70 - 150 MAX watt H.P.S. control gear internally mounted on
removable gear sub tray by plug & socket connections. Top
housing punched 20mm diam to accept P.E.C.U.(E.R.12.HN). All
internal wiring in heat resistant sleeving. |
Cable
Option - supplied with 3-5 metres of 1.5 three core butyl
covered cable ready wired into lantern head.
|
SMALL COTLEIGH LANTERN
Small
Cotleigh Ref S.C. 50/100W 240V
A small version of the Cotleigh lantern for general purpose lighting
either suspended from a ceiling bracket or stirrup mounted on a post
2.5m(8ft). Constructed from spun aluminium with polyester stove
enamel finish. Access through hinged bowl.
Excellent for parks and gardens, black finish. Other
colours available on request.
|
 |
Lamps GLS or 100W HPS MAX (not available with optical reflector) |
 |
